Description
The Mobile Oil Tester (MOT) Kit enables you to quickly realise the benefits of the Oil Quality Sensor (OQSx-G2). It has been designed to be very easy to use and it will give you an immediate view of the quality of the oil being sampled.
The kit includes everything you need to see the Oil Quality Sensor (OQSx-G2) in action, all you need to add are some samples of oils to be tested and is supplied in a robust case allowing you to safely take it with you everywhere.
Just install the software supplied, connect the Oil Quality Sensor (OQSx-G2) via the Configuration Cable to your laptop/PC and you are ready to go. Once you have taken a sample, you can easily clean the sensor using the supplied solvent, then you are ready for your next sample.

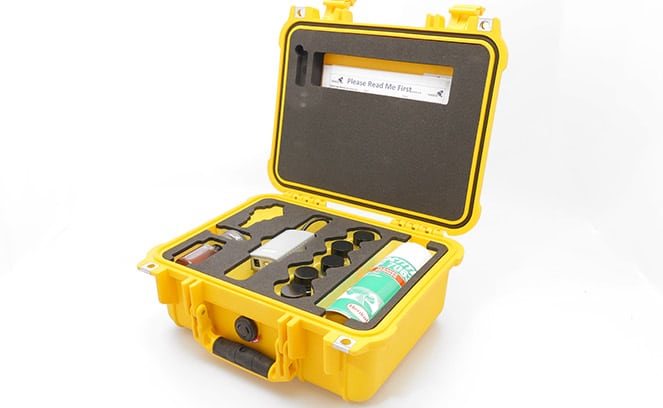

Kit Contents:

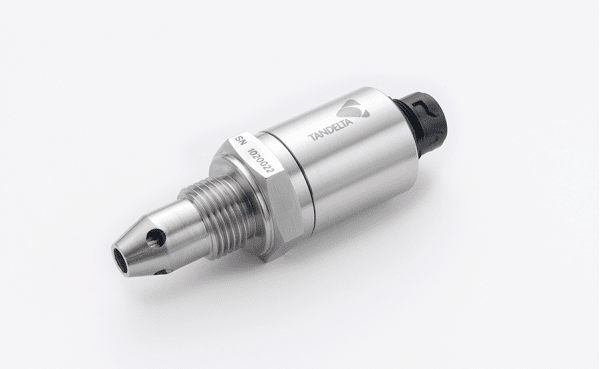

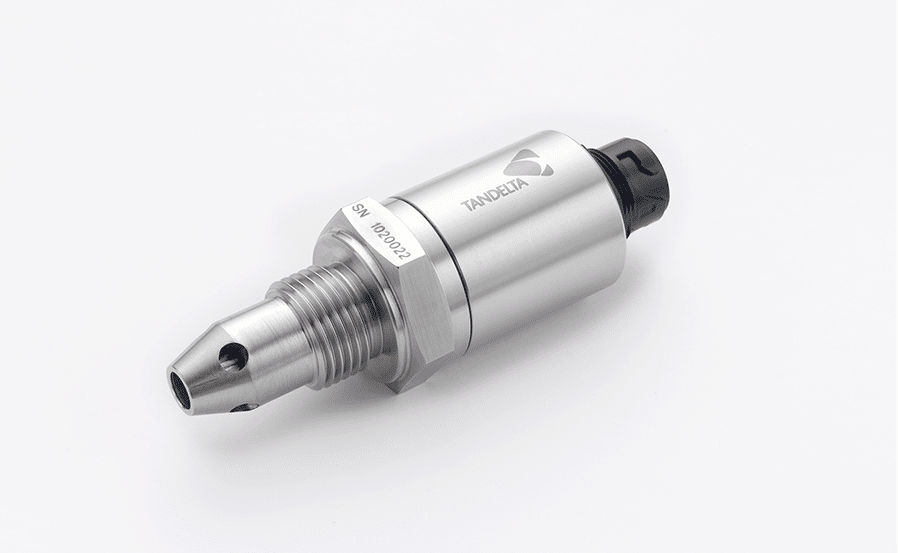

- Oil Quality Sensor (OQSx-G2)

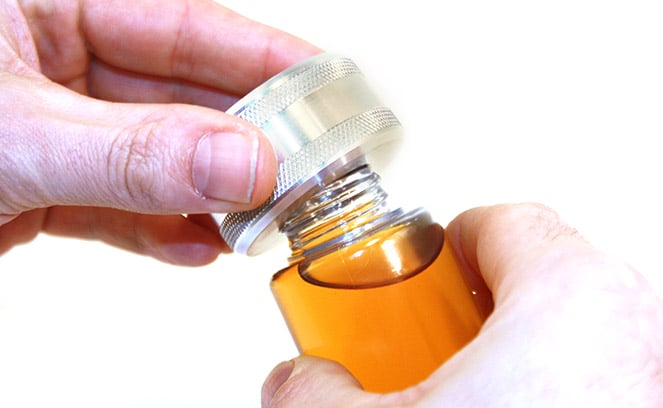

- Bottle Adapter
- 5 x Sample Bottles
- Sampling Software & Oil Database
- Cleaning Solvent
- Pelicase
- Configuration Cable
- Instructions
- ALL YOU NEED – Everything your service engineers need to undertake instant oil analysis in one place.
- PORTABLE – The MOT Kit is fully portable – ideal for the workshop and for field maintenance crews.
- ROBUST & RUGGED – Housed within a rugged industrial quality IP67 rated case, ideal for throwing in the back of your service vehicle and carrying on site.
- INSTANT RESULTS – Instant diagnosis of potential issues with the ability to store trend data.
- FULLY CONFIGURABLE – Suitable for use in any commercial or industrial environment, the MOT Kit allows accurate testing of any oil or fuel oil.
- INDEPENDENTLY TESTED – Has undertaken rigorous independent testing to verify the outstanding performance in a wide variety of applications.
Mobile Oil Tester Specifications
| PRODUCT INFORMATION | |
|---|---|
| Name | Mobile Oil Tester (MOT) Kit |
| Product Number | OQ-MOT-1 |

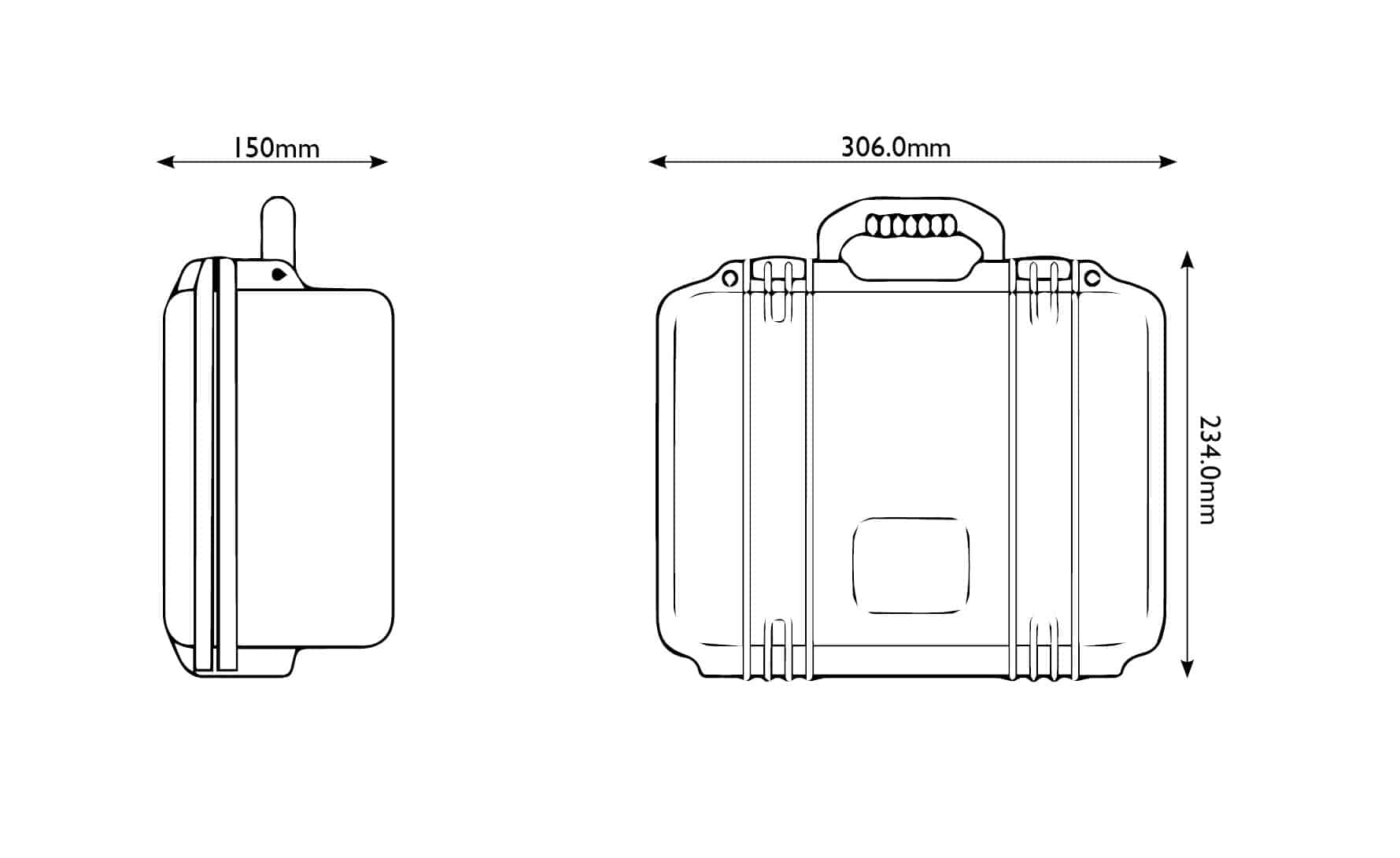

| PHYSICAL | |
|---|---|
| Buoyancy Maximum | 9.1kg |
| Security | Stainless steel padlock hasps |
| Weight | 3kg |
| Handle | Single, fold down, rubber over-moulded handle. |
| Features | Automatic pressure equalisation valve, rubber ‘O-Ring’ seal, solid wall design, scratch resistant. |
| OIL QUALITY DETECTION PARAMETERS | |
|---|---|
| Frequency | 15 per second |
| Sensitivity | 10ppm |
| Accuracy | +/-0.5% |
| Elements | All wear and contamination |
| SYSTEM REQUIREMENTS | |
|---|---|
| Operating System | Windows 7, Windows 8, Windows 10 |
| Minimum Space | 100Mb |
| Internet Connection | Optional for application and database updates |
| STANDARDS & CERTIFICATION | |
|---|---|
| Water & Dust | IP67 when connected |
| Shock & Vibration | BS EN 60068-2-30 (Test Db – Cyc.Hum.) BS EN 60068-2-6 (Test Fc – Sine Vib.) BS EN 60068-2-27 (Test Ea – Mech.Shock) |
| EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) EN 61000-6-2:2007 (Generic Immunity Standard for Industrial Environments) |
| Case Protection | Waterproof Crushproof Dustproof Corrosion-proof |
| Case Certification | IP67, Stanag 4280 / Defstan 81-41 MIL C-1450-J, ATA |
| Conformity | CE Marked RoHS Compliant |
DOWNLOADS
Data Sheet MOT Kit – Apr 21
Quick Start Guide MOT Kit
