Description
The Photopette® OD600 Ultrafast Handheld Spectrophotometer is an easy to use and very cost-effective device dedicated to measure samples at the 600 nm wavelength. Its ideal to determine growth rates of cell types such as yeast, E. coli, spirulina and several mammalian cell lines or protein quantification using the Bradford protein assay. With it’s large dynamic range of up to 3 AU even dens cultures can be measured without dilution. The control app has several inbuilt cell density calibrations and enables the user to create its own calibrations for user specific cell lines. The app also allows automatic measurements over a period of time to determine grows kinetics.
Supports 600 nm
The Photopette® OD600 is a handheld device controlled by an app on a smartphone or tablet. Its powered by a long lasting lithium battery, which makes it highly portable and convenient to use directly within a cell culture hood on the lab bench or in the field.
The Photopette system is designed for a sampling free workflow, thus increases efficiency and decreases the risk of cross-contamination.
The common workflow in spectrophotometry is that samples are transferred into a cuvette and the cuvette is then placed into a spectrophotometer. The Photopette however simplifies this workflow. The user picks up a CuveTip with the device and directly immerses the tip into the sample. The sample solution then enters a cavity of the CuveTip and with a click on the device or app the measurement value is displayed on the app. There is No sample transfer!
Photopette OD600 Ultrafast Handheld Spectrophotometer Specifications
| Measure without sample transfer in | 96 well plates, 500-2000 ?l reaction tubes, T75 cell culture flasks, 15 & 50 ml Falcon tubes, Erlenmeyer flasks up to 500 ml. |
| Wavelength Accuracy | ±2 nm |
| Measurement Precision & Accuracy | better than ±0.003 AU |
| Photometric range | 0.000 AU ~3.000 AU |
| Measurement time | Within 2 seconds per measured wavelength |
| Warm up time | None |
| Lifetime (light-source) | >500,000 measurements per wavelength |
| Wavelengths | 600 nm |
| iOS and Android | Yes |
| Ergonomic | Yes |
| Weight | 160 g |
| Language | English, German and Chinese |
Order Information
| Ordering Number | Item |

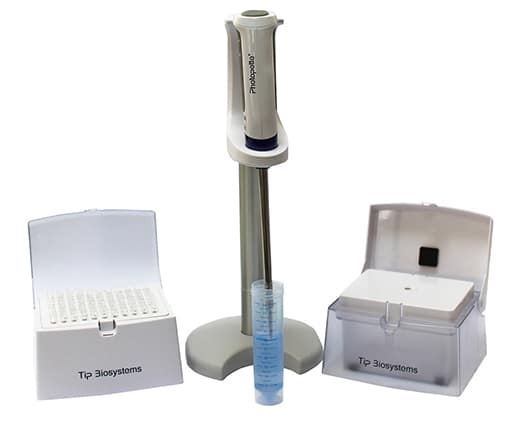

| 508-OD600 | Photopette® OD600 Kit supplied with Photopette® device (supports 600 nm) Photopette® stand holder CuveTip® Box CuveTip® Ejector Box 88 disposable CuveTips® USB connection cable and quick start guide |
