Description
The Tan Delta Systems Real Time Oil Condition Analysis Sensor provides continuous oil condition analysis with integrated intelligent equipment maintenance optimisation analytics. Detects and measures all and any wear and contamination. Any industrial or commercial application – any oil type.

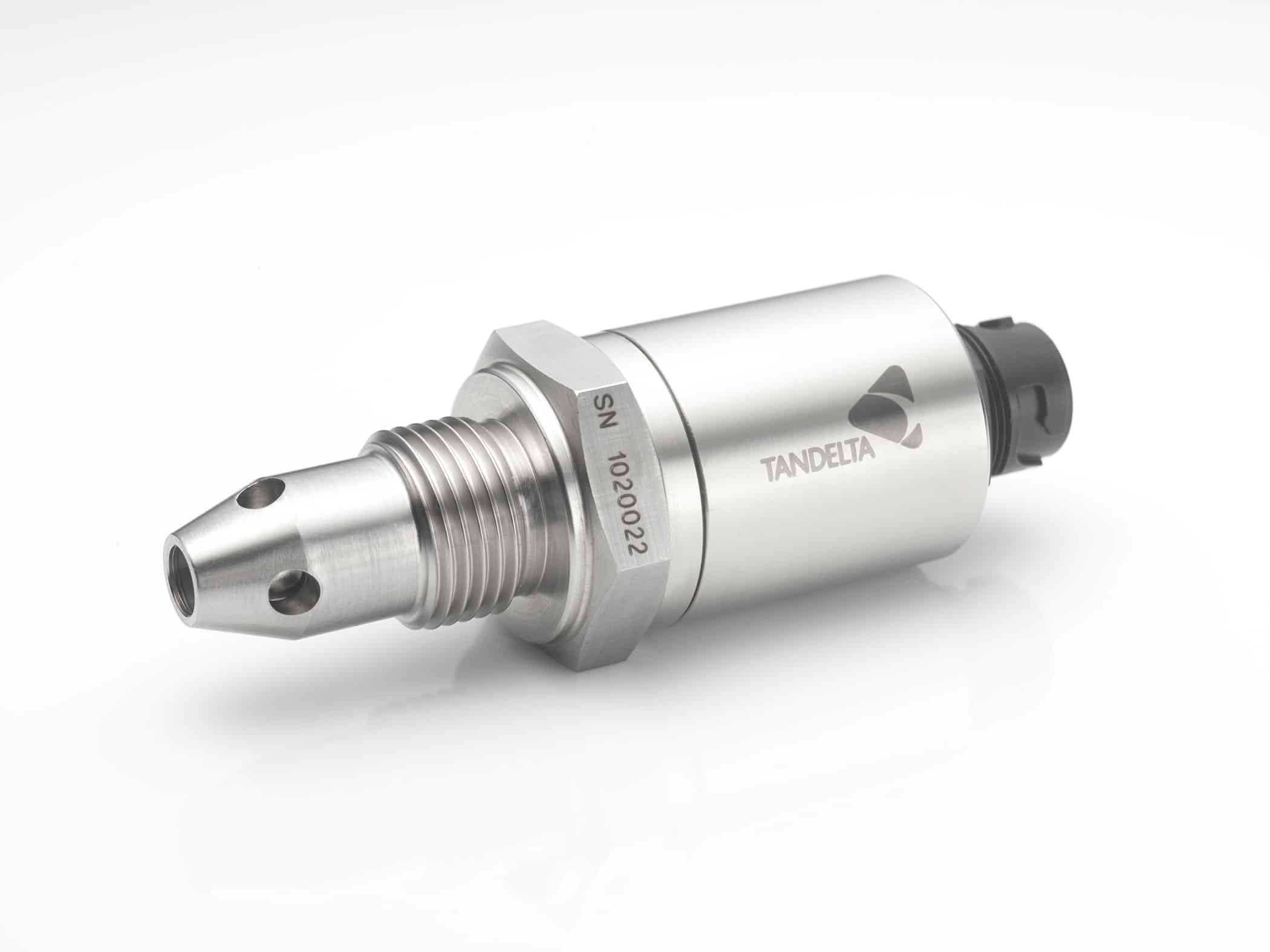

Easy to install, the OQSx-G2 continually analyses oil in real-time whilst equipment is in operation and provides an accurate statement of oil condition. Any wear or contamination is instantly detected, measured to an accuracy of 0.001%, and reported.
- FULL SPECTRUM HOLISTIC (FSH™) – Detects all and any wear and contamination: water, acid, fuel, viscosity, different oil types, carbon, particles etc.
- ABSOLUTE ACCURACY – The FSH technology within our sensor enables it to have a oil quality change sensitivity detection of 0.01% (10ppm) with an accuracy margin of +/-0.5%.
- REAL-TIME – Continuously analyses oil condition on operating equipment and reports oil condition every two seconds.
- ROBUST & RELIABLE – Proven around the world for use in even the most extreme industrial and commercial applications.
- EASY TO INSTALL – Quick and easy to install on any equipment with plug & play integration with any existing data reporting and display systems.
OQSx-G2 Real Time Oil Condition Analysis Sensor SPECIFICATIONS
| PRODUCT INFORMATION | |
|---|---|
| Name | Gen II – Oil Quality Sensor |
| Product Number | OQSx-G2-1-DD-02-5 |
| PHYSICAL | |
|---|---|
| Material | Stainless Steel AISI304 |

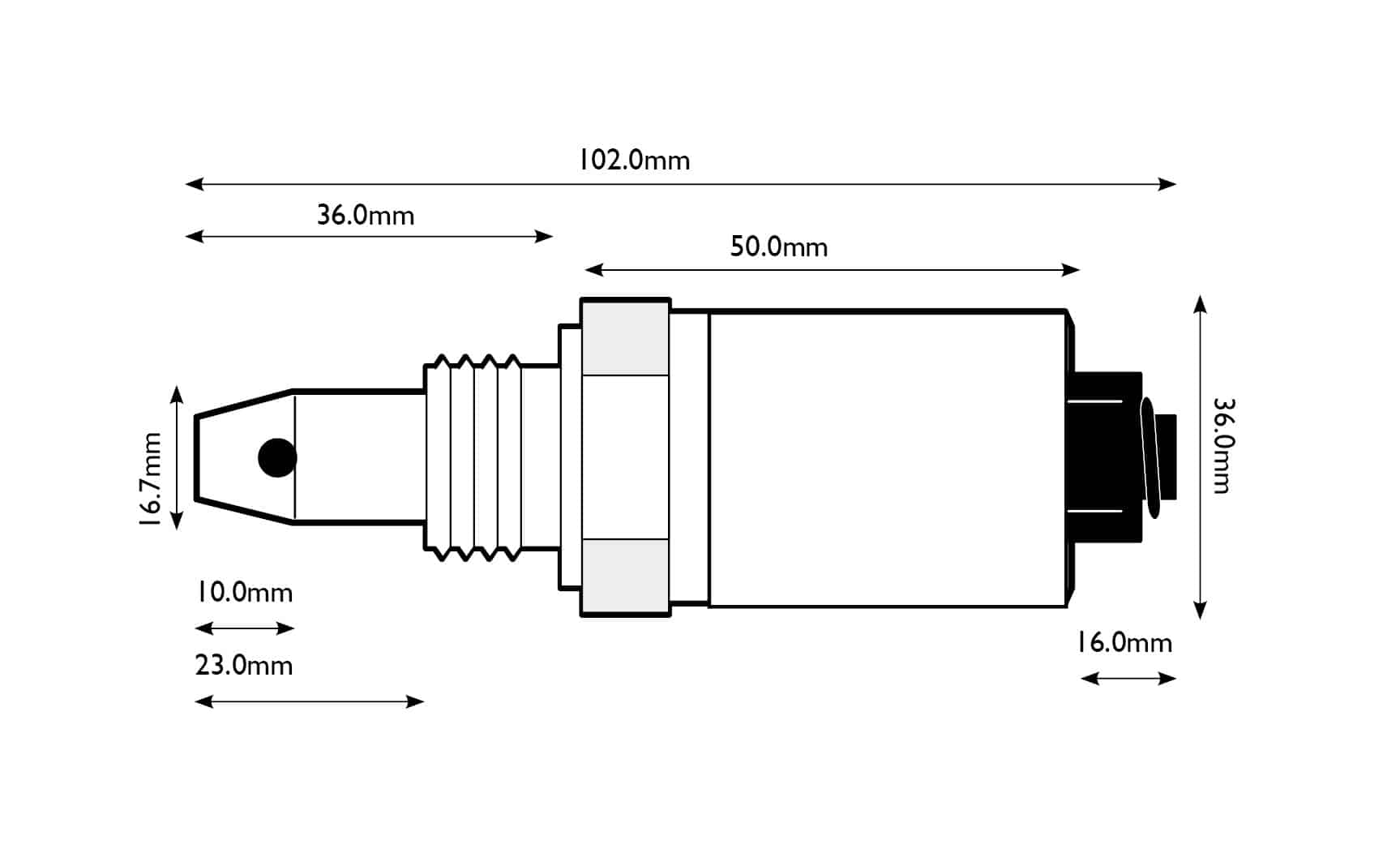

| Dimensions | 102mm x 36mm (L x W) |
| Weight | 180g |
| Connection | 32mm AF Hex Collar |
| Torque | 25N m |
| AVAILABLE THREADS | |
|---|---|
| Thread | Seal |
| 1/2” BSPP | Dowty Type |
| 1/2” NPT | n/a |
| 7/8” UNF | ‘O’ Ring |
| M18 | Dowty Type |
(Alternative threads available upon request)
| CONNECTIONS | |
|---|---|
| Connector | 6 pin Bulgin 4000 series |
| ELECTRICAL | |
|---|---|
| Supply | +9-30 V DC |
| Consumption | 0.4w Average |
| DATA OUTPUT / INPUT | |
|---|---|
| Digital Output | RS485, CANbus |
| Protocols Supported | Modbus, CanOpen and J1939 |
| Analog Output | 4-20mA |
| OIL QUALITY DETECTION PARAMETERS | |
|---|---|
| Frequency | Every 2 seconds |
| Output | Tan Delta Number (TDN) Oil Temperature (°C or °F) |
| Accuracy | +/-0.5% |
| Elements | All wear and contamination |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -40°C (-40°F) to +120°C (+248°F) |
| Calibrated Temperature | -20°C (-4°F) to +120°C (+248°F) |
| Fluid Temperature | -40°C (-40°F) to +120°C (+248°F) |
| Fluid Pressure | up to 70 bar (1015 psi) |
| Storage Temperature | -55°C (-67°F) to +150°C (+302°F) |
| STANDARDS & CERTIFICATION | |
|---|---|
| Water & Dust | IP68 when connected |
| Shock & Vibration | BS EN 60068-2-30 (Test Db – Cyc.Hum.) BS EN 60068-2-6 (Test Fc – Sine Vib.) BS EN 60068-2-27 (Test Ea – Mech.Shock) |
| EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) |
| Conformity | CE Marked RoHS Compliant |
