Description
Tan Delta Systems ATEX Certified Real Time Oil Condition Analysis Sensor with integrated intelligent equipment maintenance optimisation analytics. Detects and measures all and any wear and contamination. Any industrial or commercial application – any oil type.
The OQSEx-G2 is fully certified, with ATEX approval to BS EN 60079-0: 2012 and BS EN 60079-11:2013 ?x ic IIA T3 Gc standards. The sensor is engineered from high quality AISI304 stainless steel, and is IP67 rated, suitable for deployment on any equipment including ATEX Zone 2.
Ordering code: OQSEx-G2
- FULL SPECTRUM HOLISTIC (FSH™) – Detects all and any wear and contamination: water, acid, fuel, viscosity, different oil types, carbon, particles etc.
- EXTREMELY SENSITIVE – Certified detection and measurement sensitivity of 0.001%. Even the smallest change is detected enabling early detection of issues before equipment damage.
- REAL-TIME – Continuously analyses oil condition on operating equipment and reports oil condition every two seconds.
- ROBUST & RELIABLE – Quality engineered from AISI304 stainless steel. IP67 rated, suitable for deployment on any equipment including ATEX Zone 2.
- FULLY CERTIFIED – The OQSEx-G2 is fully certified, ATEX approval to BS EN 60079-0: 2012 and BS EN 60079-11:2013 Ex ic IIA T3 Gc.
ATEX Certified Real Time Oil Condition Analysis Sensor SPECIFICATIONS
| PRODUCT INFORMATION | |
|---|---|
| Name | ATEX Oil Quality Sensor |
| Product Number | OQSExG2-1-DD-02-5 |
| PHYSICAL | |
|---|---|
| Material | Stainless Steel AISI304 |

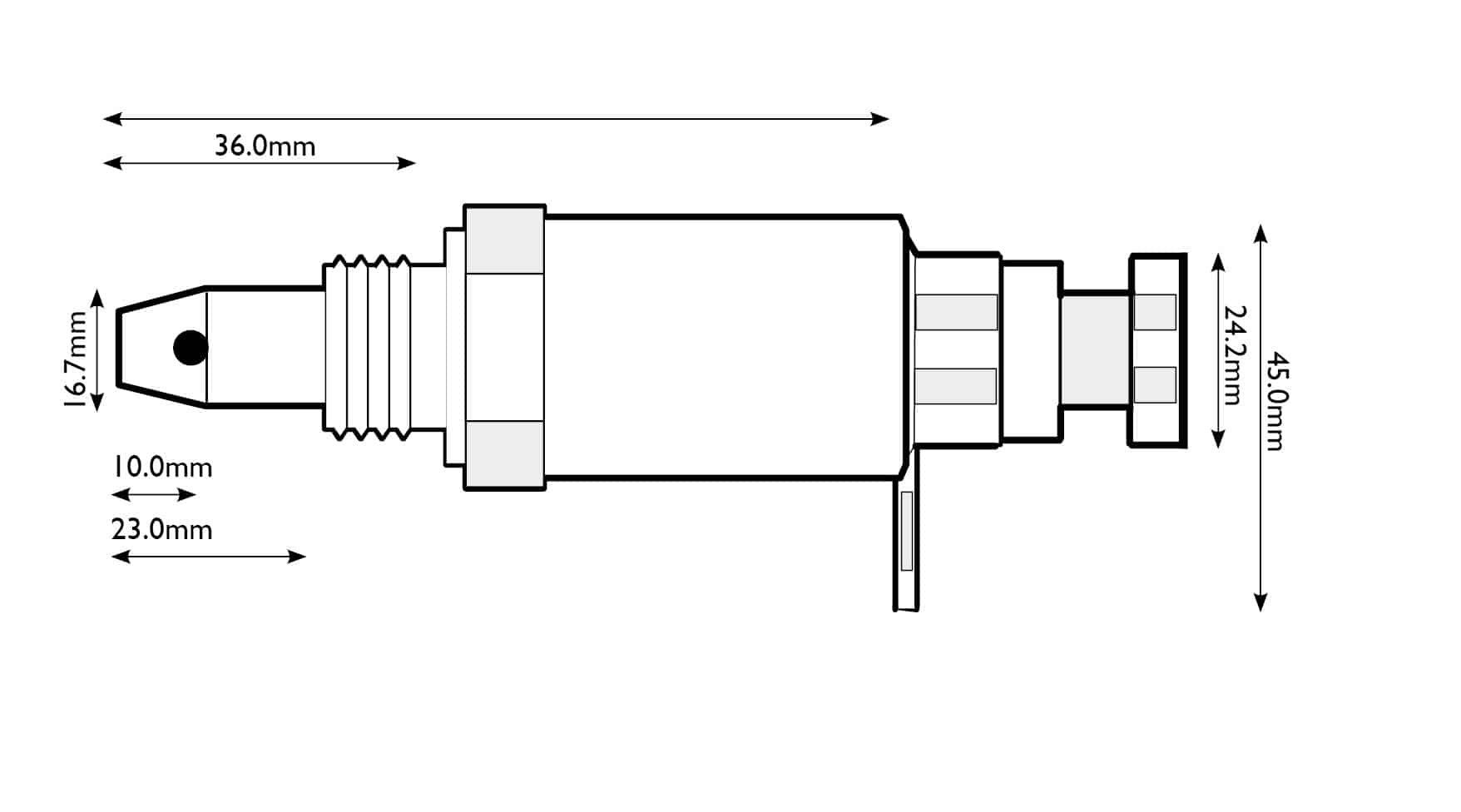

| Dimensions | 118mm x 46mm (L x W) |
| Weight | 160g |
| Connection | 32mm AF Hex Collar |
| Torque | 25N m |
| AVAILABLE THREADS | |
|---|---|
| Thread | Seal |
| 1/2” BSPP | Dowty Type |
| 1/2” NPT | n/a |
| 7/8” UNF | ‘O’ Ring |
| M18 | Dowty Type |
(Alternative threads available upon request)
| ELECTRICAL | |
|---|---|
| Supply | +9-30 V DC |
| Consumption | 0.4w Average |
| DATA OUTPUT / INPUT | |
|---|---|
| Digital Output | RS485, CANBus |
| Protocols Supported | Modbus, CANOpen and J1939 |
| OIL QUALITY DETECTION PARAMETERS | |
|---|---|
| Frequency | Every 2 seconds |
| Output | Tan Delta Number (TDN) Oil Temperature (°C or °F) |
| Accuracy | +/-1% |
| Elements | All wear and contamination |
| OIL TYPE | |
|---|---|
| Configuration | Any mineral, semi-synthetic or synthetic |
| oil, including fuels (diesel & bio-diesel) | |
| ENVIRONMENTAL | |
|---|---|
| Calibrated Temperature | -20°C (-4°F) to +120°C (+248°F) |
| Operating Temperature | -40°C (-40°F) to +120°C (+248°F) |
| Fluid Temperature | -40°C (-40°F) to +120oC (+248°F) |
| Fluid Pressure | up to 70 bar (1015 psi) |
| Storage Temperature | -55°C (-67°F) to +150°C (+302°F) |
| STANDARDS & CERTIFICATION | |
|---|---|
| Water & Dust | IP67 when connected |
| Shock & Vibration | BS EN 60068-2-30 (Test Db – Cyc.Hum.) BS EN 60068-2-6 (Test Fc – Sine Vib.) BS EN 60068-2-27 (Test Ea – Mech. Shock) |
| EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments) EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) |
| ATEX | Zone II approval to BS EN 60079-0: 2012 and BS EN 60079-11:2013 Ex ic IIA T3 Gc |
| Conformity | CE Marked RoHS Compliant |
