Description

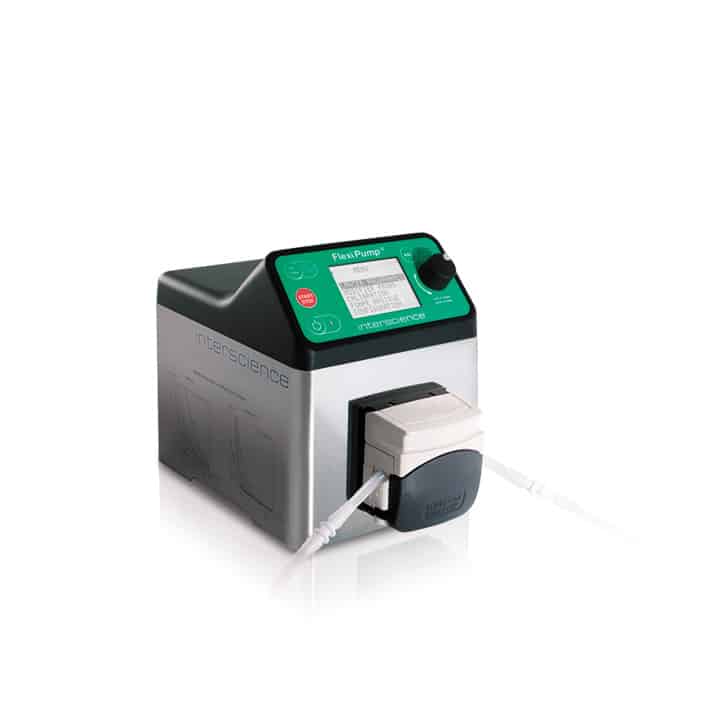

Interscience FlexiPump Dispensing pump for culture media preparation
Ref. 561 000
Interscience FlexiPump is a peristaltic pump with enhanced accuracy for the dispensing of culture media, agar and any type of diluent. Compact and ergonomic, it comes with a user-friendly interface.
- Dispensing mode: Continuous – Dose – Multi-dose
- Dose volume: from 50 µL to 99.9 L
- Flow rate: up to 1.25 L/mn
Designed for laboratories
FlexiPump is compact and easy to use with 3 dispensing modes: continuous, dose (predetermined volume) and multi-dose (predetermined volume, with an
adjustable pause between each dose). It has 32 customizable programs. FlexiPump easily calibrates and picks up in all types of containers.
Simplified distribution
The distribution can be done in series. The control is increased with the handy gun, the adjustable arm and the foot pedal.
Control and accuracy of the distributed volume
FlexiPump is equipped with a powerful motor allowing the distribution of 50 ?L to 99.9 L with a flow rate up to 2.5 L/min. The difference in precision between several distributions reaches 1%. FlexiPump complies with ISO 7218 standards.
Ergonomics of the workstation
FlexiPump is compact: only 16 cm wide. The large screen and the rotating button enable easy programing. The standard distribution in all types of containers is simplified thanks to the ergonomic spray gun.
Applications
FlexiPump is used for all serial distribution in food, environmental, pharmaceutical, cosmetics, veterinary and public research institutes.
SPECIFICATIONS
| Reference | 561 000 |
| Dose volume | 50 µL to 99 L |
| Dispensing modes | Continuous – Dose – Multi-dose |
| Multi-dose pause | Adjustable from 0.1 to 99.9 s |
| Watson MarlowTM pump | Single pump head |
| Typical precision with inner diameter 3.2 mm tubing | 9 mL : ± 1.8 % – 18 mL : ± 1 % – 225 mL : ± 0.5 % |
| Delivered with (tubing inner diameter) | 3.2 mm dispensing assembly |
| Flow rates | 1.5 mL/min. to 1.25 L/min. |
| Pump head rotating speed | 10 to 550 rpm |
| Tubing inner diameter (in option) | 1.6 mm – 3.2 mm – 4.8 mm – 6.4 mm – 8 mm |
| Tubing wall thickness | 1.6 mm only |
| Tubings made from | TygonTM (for pump head) and silicon |
| Net weight | 5.40 kg |
| Dimensions (w x d x h) | 16.1 x 27.3 x 20.8 cm |
| Box (w x d x h) | 50 x 40 x 40 cm |
| Gross weight | 8.20 kg |
| Voltage – Frequencies | 100-240 V? 50-60 Hz |
| Fuses | T 2.5A L 250V 5×20 mm |
| Power | 50 W |
| International protection marking | 31 |
| All stainless steel | N |
| Warranty | 1 year |
| In compliance with | ISO 7218 and FDA BAM (Bacteriological Analytical Manual) |
 |
Delivered with: 1 peristaltic Watson MarlowTM pump head, 1 set of 3.2 mm dispensing assembly (nozzle + GL45 bottle connector + filter + tubing + tube weight), 1 user’s manual, 1 power cord, 1 free pack of blender bags |
