747L Ultra Low Freezer | Model U 701

Request Quote
Product Added to Quote Successfully.
View Quote
SKU: 991.8620.02 Categories: ,

Description

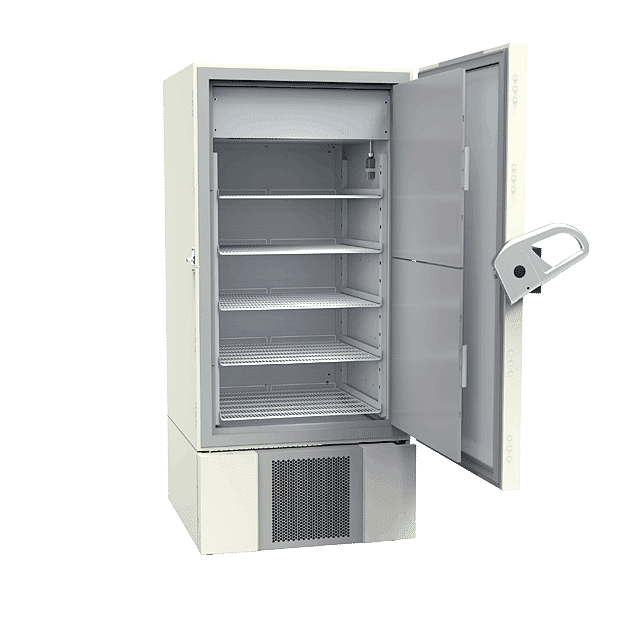

747L Ultra Low Freezer | Model U 701

Ultra Low Freezers, including the 747L Ultra Low Freezer | Model U 701, are devices intended for the storage of blood components and blood plasma, human cells, tissues and other laboratory samples at ultra low temperatures down to -86°C. U models reflect the highest and most uncompromising requirements with state-of-the-art technology and economy. The cooling system is optimally designed with respect to energy consumption as well as to the development of waste heat and noise. Standard factory setpoint is -82°C and temperature is adjustable from -40°C to -86°C. 747L Ultra Low Freezer | Model U 701 from B Medical Systems is available in Australia exclusively from Banksia Scientific.



Exclusive integrated electronics handlebar (patent pending)

All functionalities are easily accessible:

• Digital control with full functionalities – Standard 7’’ touchscreen with pre-installed connection allowing exclusive °B Connected monitoring functionalities.

• Open/close – Heavy duty door lock mechanism



High-quality materials

New high-quality coating, certified medical devices quality and antibacterial, high-quality steel for better longevity and easy hygiene control.



Special features

• Integrated pressure release valve in the door permitting faster opening in one move, and offering easy access for cleaning or defrost.

• Insulated inner doors for significantly lower loss of cooling when open.

• Full compatibility of inner modules and rails, no need to buy new racks, you can keep racks previously used in different U models.



Versatile modularity

Excellent storage capacity and modularity – Large choice of racks offering modularity for every kind of needs.



Specifications

  • Gross / Net volume (l) 747 / 720
  • Storage capacity (cryoboxes) 500
  • Storage capacity (vials 2ml) 50000
  • Set temperature (preset) -82°C
  • Set temperature (setting range) can be adjusted in steps of 0.1°C -86°C to -40°C
  • Temperature cold / warm alarm limit -87°C / -77°C
  • Hold over time (+5°C to +10°C) 1.3 (from -80°C to -60°C)
  • Climate class (ambient temperature range) SN (+10°C to +32°C)
  • Defrosting technique Manual
  • Refrigerant type R290 / R170
  • External dimensions H x W x D (mm) 1988 x 992 x 1039
  • Inner dimensions H x W x D (mm) 1370 x 740 x 713
  • Supply voltage (V) 230
  • Frequency (Hz) 50
  • Power (W) 2000
  • Energy consumption (kWh/24h) 11.9
  • Heat emission (Kcal/h) 426
  • Compressor running time (%) 50
  • Noise level (dB(A)) (at 1m height & 1m distance) 57
